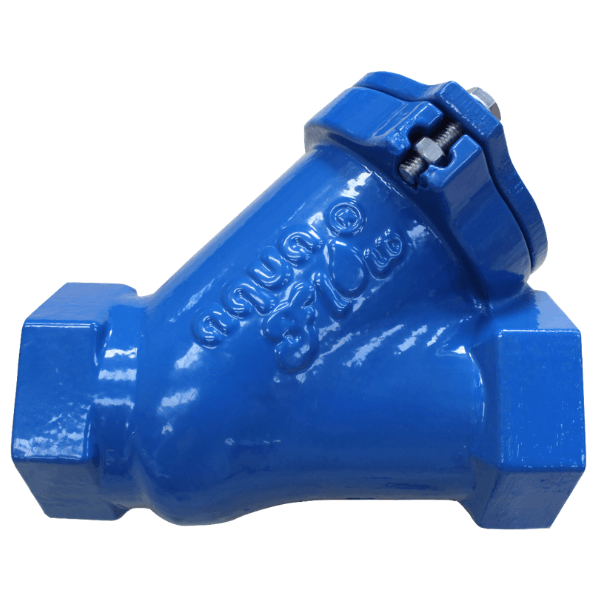

Ball Brake - Non-Return Ball Check Valve
The Ball Brake® is a self-acting ball check valve designed to prevent reverse flow in sewage and wastewater applications up to 60°C with a max pressure rating of 10 Bar.
The full-bore body and smooth internal profile ensure minimal pressure losses and reduce the risk of material deposits from accumulating within the valve.
Upon request, the Ball Brake® is available with either a sinking ball or a floating ball.
Technical Specification
- Certified to EN12050-4
- Pressure rating: 10 bar
- DN25 to DN65: BSP female threaded connections
- DN80 to DN200: Flanged BS EN 1092-2 table 8 (PN10)
Features
- Self-cleaning
- Epoxy-coated iron, full-bore body
- Nitrile encapsulated ball
Benefits
- Designed in the UK
- Independently certified performance
- Robust compact design
- Built for reliability
