Cri-man PTE/PTEM Series - Vertical Chopper Pumps

Name: Cri-man PTE/PTEM Series - Vertical Chopper Pumps
Brand: T-T Pumps
SKU: 94

Cri-Man's PTE vertical chopper pump range is driven by an extended shaft with air-cooled motor and features a heavy-duty, robust construction materials and a double chopping system, making it suitable for professional use.

The PTEM versions have a nozzle jet mixer. Both versions are equipped with a multi vane-impeller and double chopping system in suction.

View Performance Data

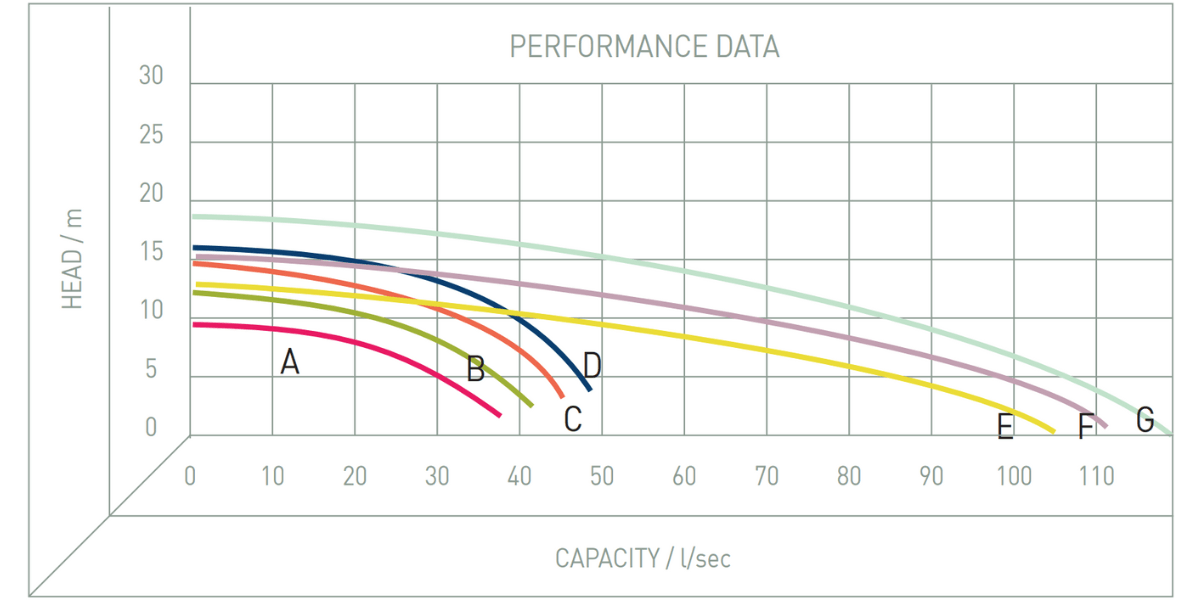

Performance Image for Cri-man PTE/PTEM Series - Vertical Chopper Pumps

Orders placed by 3pm have same working day dispatch and next working day delivery, selected models only

Need help finding the right solution?

Call our Specialist Advisers +44 (0)1630 647200

Model Options

Type	Product Code	Curve	Output		Discharge		Maximum		Datasheet	Depth of Tank (m)	Pump Length (m)	Band	Price	Delivery Status	Configure
Type	Product Code	Curve	Amps	kW	mm	inch	Head m	Capacity l/sec	Datasheet	Depth of Tank (m)	Pump Length (m)	Band	Price	Delivery Status	Configure
PTEM 18.5-150 400V/3Ph	PCR/PTEM18.5-150/3	G	38 amp18.5 kW	18.5	150 mm6 inch	6	Head18 mCapacity121 l/sec	121	datasheet	4.5 - 5	5	C	Contact Sales		Enquire Now
PTEM 15-150 400V/3Ph	PCR/PTEM15-150/3	F	28.5 amp15.0 kW	15.0	150 mm6 inch	6	Head15.5 mCapacity111 l/sec	111	datasheet	4 - 4.5	4.5	C	Contact Sales		Enquire Now
PTEM 11-150 400V/3Ph	PCR/PTEM11-150/3	E	21.4 amp11.0 kW	11.0	150 mm6 inch	6	Head12.9 mCapacity104 l/sec	104	datasheet	3.5 - 4	4	C	Contact Sales		Enquire Now
PTEM 9-100 400V/3Ph	PCR/PTEM9-100/3	D	19 amp9.0 kW	9.0	100 mm4 inch	4	Head16 mCapacity48 l/sec	48	datasheet	3 - 3.5	3.5	C	Contact Sales		Enquire Now
PTEM 7.5-100 400V/3Ph	PCR/PTEM7.5-100/3	C	14.8 amp7.5 kW	7.5	100 mm4 inch	4	Head15 mCapacity45 l/sec	45	datasheet	2.5 - 3	3	C	Contact Sales		Enquire Now
PTEM 5.5-100 400V/3Ph	PCR/PTEM5.5-100/3	B	11.0 amp5.5 kW	5.5	100 mm4 inch	4	Head12 mCapacity42 l/sec	42	datasheet	2 - 2.5	2.5	C	Contact Sales		Enquire Now
PTEM 4-100 400V/3Ph	PCR/PTEM4-100/3	A	8.35 amp4.0 kW	4.0	100 mm4 inch	4	Head10 mCapacity37 l/sec	37	datasheet	1.5 - 2	2	C	Contact Sales		Enquire Now
PTE 18.5-150 400V/3Ph	PCR/PTE18.5-150/3	G	38 amp18.5 kW	18.5	150 mm6 inch	6	Head18 mCapacity121 l/sec	121	datasheet	4.5 - 5	5	C	Contact Sales		Enquire Now
PTE 15-150 400V/3Ph	PCR/PTE15-150/3	F	28.5 amp15.0 kW	15.0	150 mm6 inch	6	Head15.5 mCapacity111 l/sec	111	datasheet	4 - 4.5	4.5	C	Contact Sales		Enquire Now
PTE 11-150 400V/3Ph	PCR/PTE11-150/3	E	21.4 amp11.0 kW	11.0	150 mm6 inch	6	Head12.9 mCapacity104 l/sec	104	datasheet	3.5 - 4	4	C	Contact Sales		Enquire Now
PTE 9-100 400V/3Ph	PCR/PTE9-100/3	D	19 amp9.0 kW	9.0	100 mm4 inch	4	Head16 mCapacity48 l/sec	48	datasheet	3 - 3.5	3.5	C	Contact Sales		Enquire Now
PTE 7.5-100 400V/3Ph	PCR/PTE7.5-100/3	C	14.8 amp7.5 kW	7.5	100 mm4 inch	4	Head15 mCapacity45 l/sec	45	datasheet	2.5 - 3	3	C	Contact Sales		Enquire Now
PTE 5.5-100 400V/3Ph	PCR/PTE5.5-100/3	B	11.0 amp5.0 kW	5.0	100 mm4 inch	4	Head12 mCapacity42 l/sec	42	datasheet	2 - 2.25	2.5	C	Contact Sales		Enquire Now
PTE 4-100 400V/3Ph	PCR/PTE4-100/3	A	8.35 amp4.0 kW	4.0	100 mm4 inch	4	Head10 mCapacity37 l/sec	37	datasheet	1.5 - 2	2	C	Contact Sales		Enquire Now

Type	Product Code	Curve	Output		Discharge		Maximum		Datasheet	Depth of Tank (m)	Pump Length (m)	Band	Price	Delivery Status
Type	Product Code	Curve	Amps	kW	mm	inch	Head m	Capacity l/sec	Datasheet	Depth of Tank (m)	Pump Length (m)	Band	Price	Delivery Status
PTEM 18.5-150 400V/3Ph	PCR/PTEM18.5-150/3	G	38	18.5	150	6	18	121	datasheet	4.5 - 5	5	C	Contact Sales
PTEM 15-150 400V/3Ph	PCR/PTEM15-150/3	F	28.5	15.0	150	6	15.5	111	datasheet	4 - 4.5	4.5	C	Contact Sales
PTEM 11-150 400V/3Ph	PCR/PTEM11-150/3	E	21.4	11.0	150	6	12.9	104	datasheet	3.5 - 4	4	C	Contact Sales
PTEM 9-100 400V/3Ph	PCR/PTEM9-100/3	D	19	9.0	100	4	16	48	datasheet	3 - 3.5	3.5	C	Contact Sales
PTEM 7.5-100 400V/3Ph	PCR/PTEM7.5-100/3	C	14.8	7.5	100	4	15	45	datasheet	2.5 - 3	3	C	Contact Sales
PTEM 5.5-100 400V/3Ph	PCR/PTEM5.5-100/3	B	11.0	5.5	100	4	12	42	datasheet	2 - 2.5	2.5	C	Contact Sales
PTEM 4-100 400V/3Ph	PCR/PTEM4-100/3	A	8.35	4.0	100	4	10	37	datasheet	1.5 - 2	2	C	Contact Sales
PTE 18.5-150 400V/3Ph	PCR/PTE18.5-150/3	G	38	18.5	150	6	18	121	datasheet	4.5 - 5	5	C	Contact Sales
PTE 15-150 400V/3Ph	PCR/PTE15-150/3	F	28.5	15.0	150	6	15.5	111	datasheet	4 - 4.5	4.5	C	Contact Sales
PTE 11-150 400V/3Ph	PCR/PTE11-150/3	E	21.4	11.0	150	6	12.9	104	datasheet	3.5 - 4	4	C	Contact Sales
PTE 9-100 400V/3Ph	PCR/PTE9-100/3	D	19	9.0	100	4	16	48	datasheet	3 - 3.5	3.5	C	Contact Sales
PTE 7.5-100 400V/3Ph	PCR/PTE7.5-100/3	C	14.8	7.5	100	4	15	45	datasheet	2.5 - 3	3	C	Contact Sales
PTE 5.5-100 400V/3Ph	PCR/PTE5.5-100/3	B	11.0	5.0	100	4	12	42	datasheet	2 - 2.25	2.5	C	Contact Sales
PTE 4-100 400V/3Ph	PCR/PTE4-100/3	A	8.35	4.0	100	4	10	37	datasheet	1.5 - 2	2	C	Contact Sales

Orders placed by 3-00 pm have same working day dispatch and prompt delivery, normally next working day delivery, on selected models only.

Lead time applies

Overview

Features

Cast iron and stainless steel construction
Available from 2m to 5m shaft length
Heavy duty double chopping system
Double mechanical seal with oil bath

Benefits

Customer inspired design
Fully repairable
Superior construction materials

Applications

Agriculture

Biogas Plants

Breweries And Food Processors

Industrial

Sewage Treatment Works
