Cri-Man ETV 80-150 Series - Vertical Electric Chopper Pumps

Name: Cri-Man ETV 80-150 Series - Vertical Electric Chopper Pumps
Brand: T-T Pumps
SKU: 96

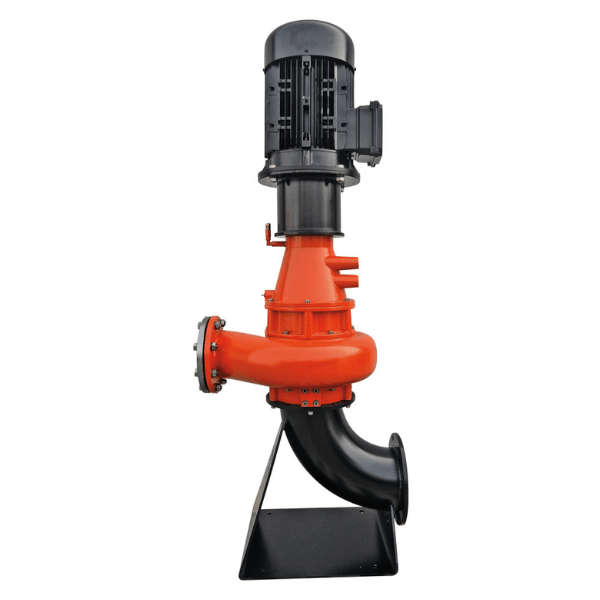

Cri-Man's ETV range of electric vertical chopper pumps is ideal for heavy-duty solids handling applications. These pumps are mounted on a vertical frame, which includes the suction inlet, and are coupled with standard electric motors via a flexible coupling.

All ETV models are equipped with a multi-vane impeller and double chopping system in the suction. These pumps are recommended for applications that require chopping of the solid materials present in the liquid being pumped.

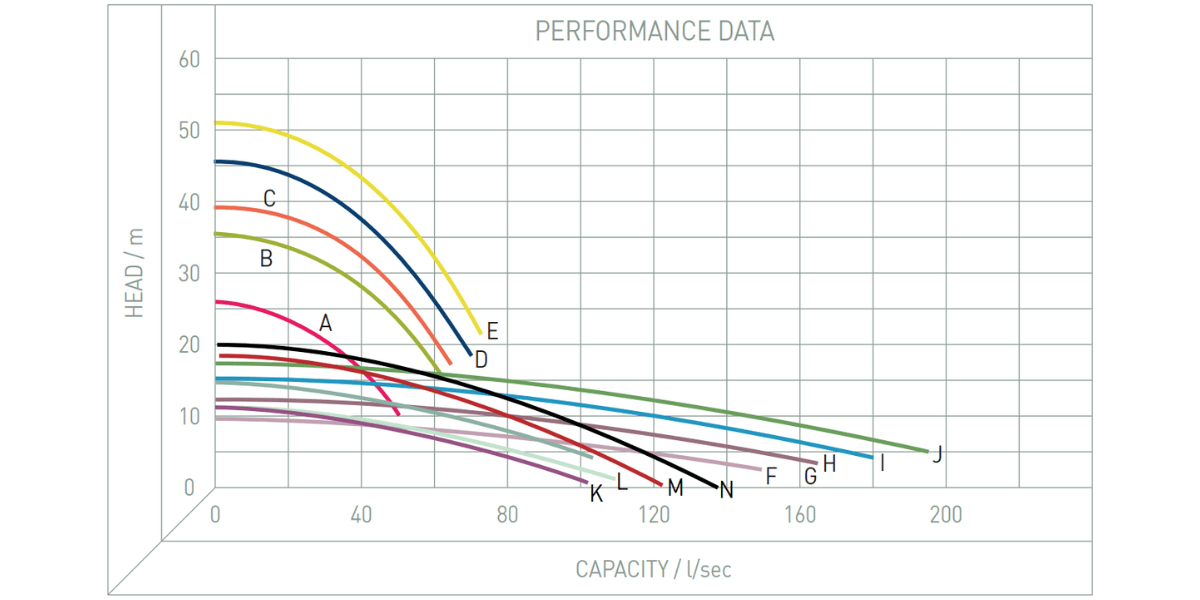

View Performance Data

Performance Image for Cri-Man ETV 80-150 Series - Vertical Electric Chopper Pumps

Orders placed by 3pm have same working day dispatch and next working day delivery, selected models only

Need help finding the right solution?

Call our Specialist Advisers +44 (0)1630 647200

Model Options

Type	Product Code	Curve	Output		Discharge		Maximum		Datasheet	Complete With	Band	Price	Delivery Status	Configure
Type	Product Code	Curve	Amps	kW	mm	inch	Head m	Capacity l/sec	Datasheet	Complete With	Band	Price	Delivery Status	Configure
ETV 22-150 400V/3Ph	PCR/ETV 22-150/3	N	42 amp22.0 kW	22.0	150 mm6 inch	6	Head20 mCapacity129 l/sec	129	datasheet	4-Pole Motor	C	Contact Sales		Enquire Now
ETV 18.5-150 400V/3Ph	PCR/ETV18.5-150/3	M	38 amp18 kW	18	150 mm6 inch	6	Head18 mCapacity121 l/sec	121	datasheet	4-Pole Motor	C	Contact Sales		Enquire Now
ETV 15-150 400V/3Ph	PCR/ETV15-150/3	L	28.5 amp15.0 kW	15.0	150 mm6 inch	6	Head15.5 mCapacity111 l/sec	111	datasheet	4-Pole Motor	C	Contact Sales		Enquire Now
ETV 11-150 400V/3Ph	PCR/ETV11-150/3	K	21.4 amp11.0 kW	11.0	150 mm6 inch	6	Head12.9 mCapacity105 l/sec	105	datasheet	4-Pole Motor	C	Contact Sales		Enquire Now
ETV 9-100 400V/3Ph	PCR/ETV9-100/3	J	19 amp9.0 kW	9.0	100 mm4 inch	4	Head16.1 mCapacity48 l/sec	48	datasheet	4-Pole Motor	C	Contact Sales		Enquire Now
ETV 7.5-100 400V/3Ph	PCR/ETV7.5-100/3	I	14.8 amp7.5 kW	7.5	100 mm4 inch	4	Head14.7 mCapacity45 l/sec	45	datasheet	4-Pole Motor	C	Contact Sales		Enquire Now
ETV 5.5-100 400V/3Ph	PCR/ETV5.5-100/3	H	11.1 amp5.5 kW	5.5	100 mm4 inch	4	Head12 mCapacity42 l/sec	42	datasheet	4-Pole Motor	C	Contact Sales		Enquire Now
ETV 4-100 400V/3Ph	PCR/ETV4-100/3	G	8.35 amp4.0 kW	4.0	100 mm4 inch	4	Head9.8 mCapacity37 l/sec	37	datasheet	4-Pole Motor	C	Contact Sales		Enquire Now
ETV 22-80N 400V/3Ph	PCR/ETV22-80N/3	F	38.9 amp22.0 kW	22.0	80 mm3 inch	3	Head51.3 mCapacity45 l/sec	45	datasheet	2-Pole Motor	C	Contact Sales		Enquire Now
ETV 18.5-80N 400V/3Ph	PCR/ETV18.5-80N/3	E	32.9 amp18.5 kW	18.5	80 mm3 inch	3	Head45.5 mCapacity39 l/sec	39	datasheet	2-Pole Motor	C	Contact Sales		Enquire Now
ETV 15-80N 400V/3Ph	PCR/ETV15-80N/3	D	27.2 amp15.0 kW	15.0	80 mm3 inch	3	Head38.9 mCapacity32 l/sec	32	datasheet	2-Pole Motor	C	Contact Sales		Enquire Now
ETV 4-80N 400V/3Ph	PCR/ETV4-80N/3	C	8.35 amp4.0 kW	4.0	80 mm3 inch	3	Head14.7 mCapacity30 l/sec	30	datasheet	4-Pole Motor	C	Contact Sales		Enquire Now
ETV 3-80N 400V/3Ph	PCR/ETV3-80N/3	B	6.39 amp3.0 kW	3.0	80 mm3 inch	3	Head12.9 mCapacity27 l/sec	27	datasheet	4-Pole Motor	C	Contact Sales		Enquire Now
ETV 2.2-80N 400V/3Ph	PCR/ETV2.2-80N/3	A	4.83 amp2.2 kW	2.2	80 mm3 inch	3	Head10.7 mCapacity27 l/sec	27	datasheet	4-Pole Motor	C	Contact Sales		Enquire Now

Type	Product Code	Curve	Output		Discharge		Maximum		Datasheet	Complete With	Band	Price	Delivery Status
Type	Product Code	Curve	Amps	kW	mm	inch	Head m	Capacity l/sec	Datasheet	Complete With	Band	Price	Delivery Status
ETV 22-150 400V/3Ph	PCR/ETV 22-150/3	N	42	22.0	150	6	20	129	datasheet	4-Pole Motor	C	Contact Sales
ETV 18.5-150 400V/3Ph	PCR/ETV18.5-150/3	M	38	18	150	6	18	121	datasheet	4-Pole Motor	C	Contact Sales
ETV 15-150 400V/3Ph	PCR/ETV15-150/3	L	28.5	15.0	150	6	15.5	111	datasheet	4-Pole Motor	C	Contact Sales
ETV 11-150 400V/3Ph	PCR/ETV11-150/3	K	21.4	11.0	150	6	12.9	105	datasheet	4-Pole Motor	C	Contact Sales
ETV 9-100 400V/3Ph	PCR/ETV9-100/3	J	19	9.0	100	4	16.1	48	datasheet	4-Pole Motor	C	Contact Sales
ETV 7.5-100 400V/3Ph	PCR/ETV7.5-100/3	I	14.8	7.5	100	4	14.7	45	datasheet	4-Pole Motor	C	Contact Sales
ETV 5.5-100 400V/3Ph	PCR/ETV5.5-100/3	H	11.1	5.5	100	4	12	42	datasheet	4-Pole Motor	C	Contact Sales
ETV 4-100 400V/3Ph	PCR/ETV4-100/3	G	8.35	4.0	100	4	9.8	37	datasheet	4-Pole Motor	C	Contact Sales
ETV 22-80N 400V/3Ph	PCR/ETV22-80N/3	F	38.9	22.0	80	3	51.3	45	datasheet	2-Pole Motor	C	Contact Sales
ETV 18.5-80N 400V/3Ph	PCR/ETV18.5-80N/3	E	32.9	18.5	80	3	45.5	39	datasheet	2-Pole Motor	C	Contact Sales
ETV 15-80N 400V/3Ph	PCR/ETV15-80N/3	D	27.2	15.0	80	3	38.9	32	datasheet	2-Pole Motor	C	Contact Sales
ETV 4-80N 400V/3Ph	PCR/ETV4-80N/3	C	8.35	4.0	80	3	14.7	30	datasheet	4-Pole Motor	C	Contact Sales
ETV 3-80N 400V/3Ph	PCR/ETV3-80N/3	B	6.39	3.0	80	3	12.9	27	datasheet	4-Pole Motor	C	Contact Sales
ETV 2.2-80N 400V/3Ph	PCR/ETV2.2-80N/3	A	4.83	2.2	80	3	10.7	27	datasheet	4-Pole Motor	C	Contact Sales

Orders placed by 3-00 pm have same working day dispatch and prompt delivery, normally next working day delivery, on selected models only.

Lead time applies

Overview

Features

Cast iron construction
Single mechanical seal within oil bath
Heavy-duty chopping system
Smaller footprint than the ETO Series chopper pumps

Optional

Twin mechanical seal

Applications

Agriculture

Biogas Plants

Breweries And Food Processors

Sewage Treatment Works
