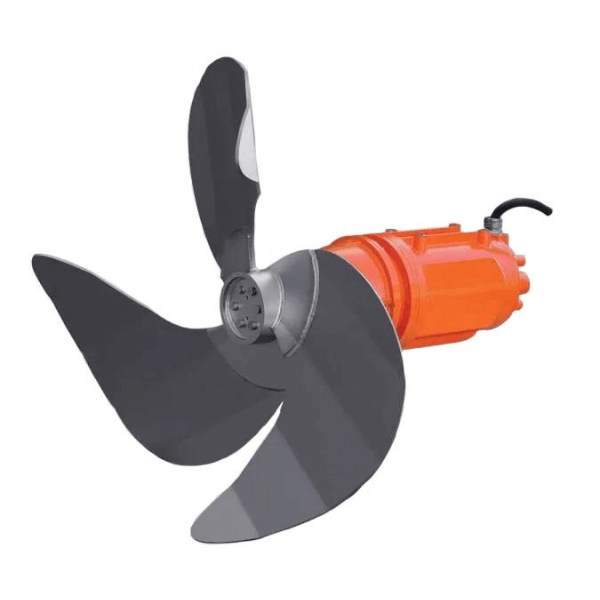

Cri-Man TMS Series - Submersible Mixer
The TMS is a mid-size submersible mixer for effective homogenisation in agricultural and environmental applications, including biogas sites, abattoirs and reservoirs. The mixer’s stainless steel propellers have a self-cleaning profile that prevents solids from accumulating on the blades, ensuring reliable and consistent long-term mixing.
Features
- Maximum submersion depth: 20m
- Maximum solids content: 12%
- Maximum liquid temperature: 40ºC
- Rpm: 116 (50Hz), 140 (60Hz)
- Motor power rating: 7.5 – 15 kW
- Axial thrust: 3265 – 4695 N
- Flow rate: 9300– 11930 m³/h
- Planetary gearbox
- Stainless steel propeller with self-cleaning profile
- IE3-class high-efficiency electric motor
- IP68 protection
Applications
- Biogas
- Agricultural
- Abattoirs
- Reservoirs
Benefits
- High-efficiency electric motor
- High axial force
- Optimum performance when used with large liquid volumes
