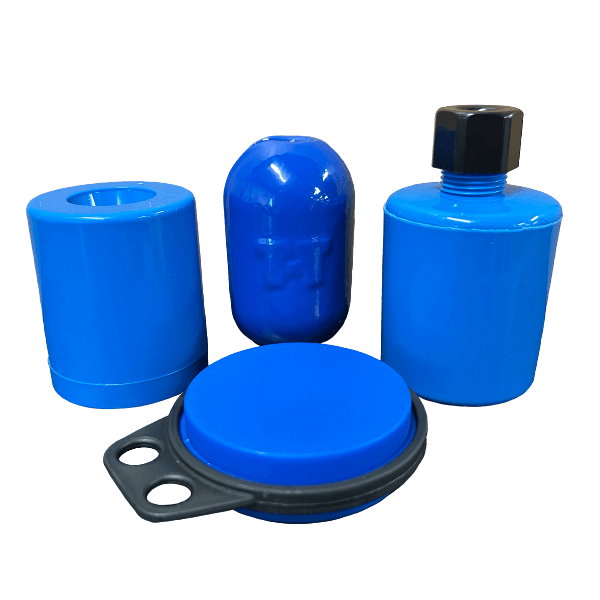

Float Switch Counterweights

Name: Float Switch Counterweights
Brand: T-T Controls
SKU: 376

Counterweights are a stabilising weight that can be fixed at any point on a float switch, allowing you to adjust the differential switching point of the float to suit your level control needs. They are also a necessary pivot point in tanks and wet wells where there is no fixed object to attach a float switch to.

The FLOCW-4 (and our Ready Level for fixing multiple float switches) features a WRAS-approved powder coating.

Our range of counterweights works with our FLO Range of floats, each one designed for long-term, reliable level control in different mediums and applications.

View our Counterweight Compatibility Chart

Datasheet

Orders placed by 3pm have same working day dispatch and next working day delivery, selected models only

Need help finding the right solution?

Call our Specialist Advisers +44 (0)1630 647200

Model Options

Type	Product Code	Weight kg	Datasheet	Dimensions (HxWxD mm)	Band	Price	Quantity	Delivery Status
Type	Product Code	Weight kg	Datasheet	Dimensions (HxWxD mm)	Band	Price	Quantity	Delivery Status
Counterweight 4	TTC/FLOCW-4	0.35 kg	datasheet	72 x 45 x 45	B	£9.45
Counterweight 1	TTC/FLOCW-1	0.25 kg	datasheet	60 x 50 x 50	B	£5.25
Counterweight 3	TTC/FLOCW-3	0.25 kg	datasheet	82 x 68 x 20	B	£5.25
Counterweight 2	TTC/FLOCW-2	0.25 kg	datasheet	80 x 50 x 50	B	£5.25

Type	Product Code	Weight kg	Datasheet	Dimensions (HxWxD mm)	Band	Price	Quantity	Delivery Status
Type	Product Code	Weight kg	Datasheet	Dimensions (HxWxD mm)	Band	Price	Quantity	Delivery Status
Counterweight 4	TTC/FLOCW-4	0.35 kg	datasheet	72 x 45 x 45	B	£9.45
Counterweight 1	TTC/FLOCW-1	0.25 kg	datasheet	60 x 50 x 50	B	£5.25
Counterweight 3	TTC/FLOCW-3	0.25 kg	datasheet	82 x 68 x 20	B	£5.25
Counterweight 2	TTC/FLOCW-2	0.25 kg	datasheet	80 x 50 x 50	B	£5.25

Orders placed by 3-00 pm have same working day dispatch and prompt delivery, normally next working day delivery, on selected models only.

Lead time applies

Overview

Selecting your counterweight

We have suitable counterweights for each of our FLO Range float switches:

		COUNTERWEIGHT
		FLOCW-1	FLOCW-2	FLOCW-3	FLOCW-4
FLOAT TYPE	FLO 102	✅	✅	✅	✅
	FLO 103	✅	✅	✅	✅
	FLO 106	✅	✅	✅	✅
	FLO107				✅

Our float switches are designed for the following applications:

FLO101 - Zone 0 applications (ATEX/IECEX approved, please contact sales for suitable accessories)
FLO102 - General purpose use
FLO103 - General purpose use
FLO106 - Diesel oil
FLO107 - Potable water
