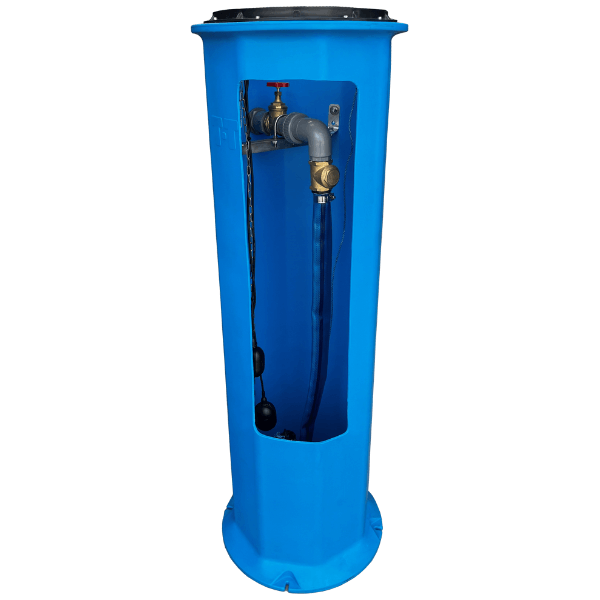

Pluto® Maxi Plus Package Pumping Station
The extended Pluto® range of BBA-approved package pumping stations is designed primarily for final effluent treatment plants, smaller foul and surface water applications, basement conversions and cavity wall drainage - available as 2.0m deep. T-T’s Pluto Maxi Plus has the same robust features as the Planet® Range.
The fully automatic system, available in a single pump configuration, is designed and built for reliability and long life, encompassing a high-performance pump range that can be selected to meet your specific application. We can also offer this system in a sewage-water configuration utilising a sewage ball valve.
All our pump stations are designed and manufactured in the UK.
Please note: When selecting the Pluto® product, please contact our technical pump sales with application details to ensure correct selection.
** Incorrect selection could affect warranty **
Features
- Strong 2m deep rotomoulded Polyethylene Chamber
- Hexagonal-shaped chamber body with flat faces to accommodate our range of duct seals and to allow for multiple inlet positions
- 1x Ø110mm inlet seal to accommodate standard drainage connections
- 1x Ø50mm seal for cable or ventilation duct
- Pedestrian-rated access frame and cover pre-fitted
- 2” BSP discharge connection point
- Supplied as a single pump system 230v 1Ph or 400v 3Ph (Dual configuration on request)
Options
- Version 1: Submersible automatic pump with internal ABS pipework, heavy-duty hose, and non-return valve - this system is operated by an integral float switch built into the pump.*Optional: Alert high-level alarm, with float bracket kit & FLO102 float
- Version 2: Submersible pump with internal ABS pipework, heavy-duty hose, and non-return valve - this system is operated by a mains-powered control panel (single phase only) featuring an indicator light, an audible alarm with a mute button, via float switches. (For 400v 3Ph pump systems, see our Libra Maxi range of control panels)
- Please note: The access cover ‘Turret’ to lower the depth of the chamber is not available on this size tank
Applications
Single Dwellings And Basements
Housing
Sewage Treatment Works
Domestic Waste Water
Drainage
