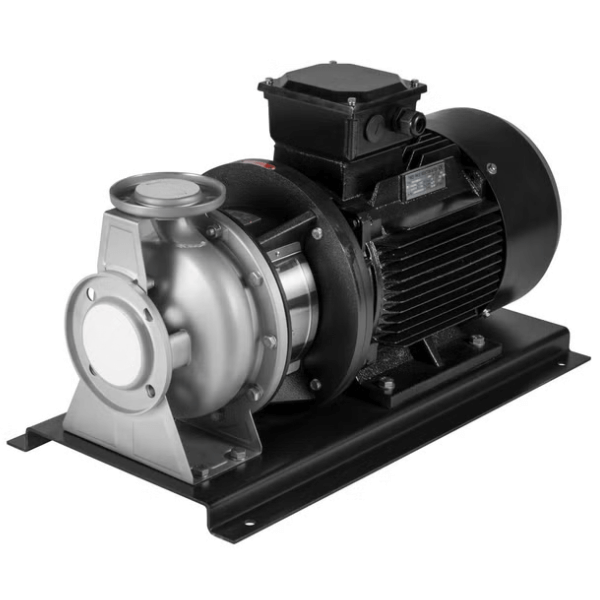

NSX – Stainless Steel Centrifugal Pump

The NSX range of horizontal, single stage pumps are designed to provide high-performance pumping – compliant with European Standard EN733, fitted with 304 stainless steel components as standard and with carbon mechanical seals for maximum reliability.

Specialist Product, Requires Technical Advice. To order call: +44 (0) 1630 647200

Need help finding the right solution?

Call our Specialist Advisers +44 (0)1630 647200

Model Options
Type Product Code Maximum Weight
kg		 Inlet x Outlet ("/mm) Motor (kW) Band Price Delivery Status Configure
Head
m		 Capacity
l/sec
NSX 100-80-200/37 PN/NSX 100-80-200/37 Head64.1 mCapacity55.5 l/sec 55.5 315 kg 4" x 3" / 100mm x 80mm 37 B
Contact Sales
Enquire Now
NSX 100-80-200/30 PN/NSX 100-80-200/30 Head55.4 mCapacity55.5 l/sec 55.5 295 kg 4" x 3" / 100mm x 80mm 30 B
Contact Sales
Enquire Now
NSX 100-80-200/22 PN/NSX 100-80-200/22 Head43.5 mCapacity55.5 l/sec 55.5 223 kg 4" x 3" / 100mm x 80mm 22 B
Contact Sales
Enquire Now
NSX 100-80-160/18.5 PN/NSX 100-80-160/18.5 Head36.2 mCapacity55.5 l/sec 55.5 185 kg 4" x 3" / 100mm x 80mm 18.5 B
Contact Sales
Enquire Now
NSX 100-80-160/15 PN/NSX 100-80-160/15 Head32.3 mCapacity55.5 l/sec 55.5 173 kg 4" x 3" / 100mm x 80mm 15 B
Contact Sales
Enquire Now
NSX 100-80-160/11 PN/NSX 100-80-160/11 Head23.8 mCapacity53.3 l/sec 53.3 163 kg 4" x 3" / 100mm x 80mm 11 B
Contact Sales
Enquire Now
NSX 80-65-200/30 PN/NSX 80-65-200/30 Head70.2 mCapacity36.1 l/sec 36.1 292 kg 3" x 2½" / 80mm x 65mm 30 B
Contact Sales
Enquire Now
NSX 80-65-200/22 PN/NSX 80-65-200/22 Head57.7 mCapacity36.1 l/sec 36.1 220 kg 3" x 2½" / 80mm x 65mm 22 B
Contact Sales
Enquire Now
NSX 80-65-200/18.5 PN/NSX 80-65-200/18.5 Head51 mCapacity36.1 l/sec 36.1 190 kg 3" x 2½" / 80mm x 65mm 18.5 B
Contact Sales
Enquire Now
NSX 80-65-160/15 PN/NSX 80-65-160/15 Head41.8 mCapacity36.1 l/sec 36.1 173 kg 3" x 2½" / 80mm x 65mm 15 B
Contact Sales
Enquire Now
NSX 80-65-160/11 PN/NSX 80-65-160/11 Head33.9 mCapacity36.1 l/sec 36.1 163 kg 3" x 2½" / 80mm x 65mm 11 B
Contact Sales
Enquire Now
NSX 80-65-125/9.2 PN/NSX 80-65-125/9.2 Head28.1 mCapacity36.1 l/sec 36.1 87 kg 3" x 2½" / 80mm x 65mm 9.2 B
Contact Sales
Enquire Now
NSX 80-65-125/7.5 PN/NSX 80-65-125/7.5 Head24.5 mCapacity33.3 l/sec 33.3 83 kg 3" x 2½" / 80mm x 65mm 7.5 B
Contact Sales
Enquire Now
NSX 80-65-125/5.5 PN/NSX 80-65-125/5.5 Head19.3 mCapacity33.3 l/sec 33.3 79 kg 3" x 2½" / 80mm x 65mm 5.5 B
Contact Sales
Enquire Now
NSX 65-50-200/18.5 PN/NSX 65-50-200/18.5 Head70.2 mCapacity19.4 l/sec 19.4 188 kg 2½" x 2" / 65mm x 50mm 18.5 B
Contact Sales
Enquire Now
NSX 65-50-200/15 PN/NSX 65-50-200/15 Head59.7 mCapacity19.4 l/sec 19.4 171 kg 2½" x 2" / 65mm x 50mm 15 B
Contact Sales
Enquire Now
NSX 65-50-200/11 PN/NSX 65-50-200/11 Head51.5 mCapacity16.6 l/sec 16.6 161 kg 2½" x 2" / 65mm x 50mm 11 B
Contact Sales
Enquire Now
NSX, 65-50-200/9.2 PN/NSX, 65-50-200/9.2 Head43.5 mCapacity16.6 l/sec 16.6 85 kg 2½" x 2" / 65mm x 50mm 9.2 B
Contact Sales
Enquire Now
NSX 65-50-200/7.5 PN/NSX 65-50-200/7.5 Head36.3 mCapacity16.6 l/sec 16.6 82 kg 2½" x 2" / 65mm x 50mm 7.5 B
Contact Sales
Enquire Now
NSX 65-50-160/5.5 PN/NSX 65-50-160/5.5 Head31.6 mCapacity16.6 l/sec 16.6 78 kg 2½" x 2" / 65mm x 50mm 5.5 B
Contact Sales
Enquire Now
NSX 65-50-125/4 PN/NSX 65-50-125/4 Head24.2 mCapacity16.6 l/sec 16.6 54 kg 2½" x 2" / 65mm x 50mm 4 B
Contact Sales
Enquire Now
NSX 65-50-125/3 PN/NSX 65-50-125/3 Head18 mCapacity16.6 l/sec 16.6 49 kg 2½" x 2" / 65mm x 50mm 3 B
Contact Sales
Enquire Now
NSX 65-40-200/11 PN/NSX 65-40-200/11 Head64 mCapacity11.1 l/sec 11.1 161 kg 2½" x 1½" / 65mm x 40mm 11 B
Contact Sales
Enquire Now
NSX 65-40-200/7.5 PN/NSX 65-40-200/7.5 Head48 mCapacity11.1 l/sec 11.1 82 kg 2½" x 1½" / 65mm x 40mm 7.5 B
Contact Sales
Enquire Now
NSX 65-40-200/5.5 PN/NSX 65-40-200/5.5 Head37.4 mCapacity11.1 l/sec 11.1 78 kg 2½" x 1½" / 65mm x 40mm 5.5 B
Contact Sales
Enquire Now
NSX 65-40-160/4 PN/NSX 65-40-160/4 Head30 mCapacity9.7 l/sec 9.7 52 kg 2½" x 1½" / 65mm x 40mm 4 B
Contact Sales
Enquire Now
NSX 65-40-125/3 PN/NSX 65-40-125/3 Head25.7 mCapacity9.7 l/sec 9.7 47 kg 2½" x 1½" / 65mm x 40mm 3 B
Contact Sales
Enquire Now
NSX 65-40-125/2.2 PN/NSX 65-40-125/2.2 Head20 mCapacity9.7 l/sec 9.7 35 kg 2½" x 1½" / 65mm x 40mm 2.2 B
Contact Sales
Enquire Now
NSX 65-40-125/1.5 PN/NSX 65-40-125/1.5 Head15.5 mCapacity8.3 l/sec 8.3 33 kg 2½" x 1½" / 65mm x 40mm 1.5 B
Contact Sales
Enquire Now
NSX 50-32-200/5.5 PN/NSX 50-32-200/5.5 Head58.5 mCapacity5.5 l/sec 5.5 77 kg 2" x 1¼" / 50mm x 32mm 5.5 B
Contact Sales
Enquire Now
NSX 50-32-200/4 PN/NSX 50-32-200/4 Head45.7 mCapacity5.5 l/sec 5.5 58 kg 2" x 1¼" / 50mm x 32mm 4 B
Contact Sales
Enquire Now
NSX 50-32-200/3 PN/NSX 50-32-200/3 Head34.9 mCapacity5.5 l/sec 5.5 53 kg 2" x 1¼" / 50mm x 32mm 3 B
Contact Sales
Enquire Now
NSX 50-32-160/2.2 PN/NSX 50-32-160/2.2 Head28 mCapacity5 l/sec 5 39 kg 2" x 1¼" / 50mm x 32mm 2.2 B
Contact Sales
Enquire Now
NSX 50-32-160/1.5 PN/NSX 50-32-160/1.5 Head22.5 mCapacity5 l/sec 5 37 kg 2" x 1¼" / 50mm x 32mm 1.5 B
Contact Sales
Enquire Now
NSX 50-32-160/1.1 PN/NSX 50-32-160/1.1 Head18.7 mCapacity3.4 l/sec 3.4 31 kg 2" x 1¼" / 50mm x 32mm 1.1 B
Contact Sales
Enquire Now
Type Product Code Maximum Weight
kg		 Inlet x Outlet ("/mm) Motor (kW) Band Price Delivery Status Configure
Head
m		 Capacity
l/sec
NSX 100-80-200/37 PN/NSX 100-80-200/37 64.1 55.5 315 kg 4" x 3" / 100mm x 80mm 37 B
Contact Sales
NSX 100-80-200/30 PN/NSX 100-80-200/30 55.4 55.5 295 kg 4" x 3" / 100mm x 80mm 30 B
Contact Sales
NSX 100-80-200/22 PN/NSX 100-80-200/22 43.5 55.5 223 kg 4" x 3" / 100mm x 80mm 22 B
Contact Sales
NSX 100-80-160/18.5 PN/NSX 100-80-160/18.5 36.2 55.5 185 kg 4" x 3" / 100mm x 80mm 18.5 B
Contact Sales
NSX 100-80-160/15 PN/NSX 100-80-160/15 32.3 55.5 173 kg 4" x 3" / 100mm x 80mm 15 B
Contact Sales
NSX 100-80-160/11 PN/NSX 100-80-160/11 23.8 53.3 163 kg 4" x 3" / 100mm x 80mm 11 B
Contact Sales
NSX 80-65-200/30 PN/NSX 80-65-200/30 70.2 36.1 292 kg 3" x 2½" / 80mm x 65mm 30 B
Contact Sales
NSX 80-65-200/22 PN/NSX 80-65-200/22 57.7 36.1 220 kg 3" x 2½" / 80mm x 65mm 22 B
Contact Sales
NSX 80-65-200/18.5 PN/NSX 80-65-200/18.5 51 36.1 190 kg 3" x 2½" / 80mm x 65mm 18.5 B
Contact Sales
NSX 80-65-160/15 PN/NSX 80-65-160/15 41.8 36.1 173 kg 3" x 2½" / 80mm x 65mm 15 B
Contact Sales
NSX 80-65-160/11 PN/NSX 80-65-160/11 33.9 36.1 163 kg 3" x 2½" / 80mm x 65mm 11 B
Contact Sales
NSX 80-65-125/9.2 PN/NSX 80-65-125/9.2 28.1 36.1 87 kg 3" x 2½" / 80mm x 65mm 9.2 B
Contact Sales
NSX 80-65-125/7.5 PN/NSX 80-65-125/7.5 24.5 33.3 83 kg 3" x 2½" / 80mm x 65mm 7.5 B
Contact Sales
NSX 80-65-125/5.5 PN/NSX 80-65-125/5.5 19.3 33.3 79 kg 3" x 2½" / 80mm x 65mm 5.5 B
Contact Sales
NSX 65-50-200/18.5 PN/NSX 65-50-200/18.5 70.2 19.4 188 kg 2½" x 2" / 65mm x 50mm 18.5 B
Contact Sales
NSX 65-50-200/15 PN/NSX 65-50-200/15 59.7 19.4 171 kg 2½" x 2" / 65mm x 50mm 15 B
Contact Sales
NSX 65-50-200/11 PN/NSX 65-50-200/11 51.5 16.6 161 kg 2½" x 2" / 65mm x 50mm 11 B
Contact Sales
NSX, 65-50-200/9.2 PN/NSX, 65-50-200/9.2 43.5 16.6 85 kg 2½" x 2" / 65mm x 50mm 9.2 B
Contact Sales
NSX 65-50-200/7.5 PN/NSX 65-50-200/7.5 36.3 16.6 82 kg 2½" x 2" / 65mm x 50mm 7.5 B
Contact Sales
NSX 65-50-160/5.5 PN/NSX 65-50-160/5.5 31.6 16.6 78 kg 2½" x 2" / 65mm x 50mm 5.5 B
Contact Sales
NSX 65-50-125/4 PN/NSX 65-50-125/4 24.2 16.6 54 kg 2½" x 2" / 65mm x 50mm 4 B
Contact Sales
NSX 65-50-125/3 PN/NSX 65-50-125/3 18 16.6 49 kg 2½" x 2" / 65mm x 50mm 3 B
Contact Sales
NSX 65-40-200/11 PN/NSX 65-40-200/11 64 11.1 161 kg 2½" x 1½" / 65mm x 40mm 11 B
Contact Sales
NSX 65-40-200/7.5 PN/NSX 65-40-200/7.5 48 11.1 82 kg 2½" x 1½" / 65mm x 40mm 7.5 B
Contact Sales
NSX 65-40-200/5.5 PN/NSX 65-40-200/5.5 37.4 11.1 78 kg 2½" x 1½" / 65mm x 40mm 5.5 B
Contact Sales
NSX 65-40-160/4 PN/NSX 65-40-160/4 30 9.7 52 kg 2½" x 1½" / 65mm x 40mm 4 B
Contact Sales
NSX 65-40-125/3 PN/NSX 65-40-125/3 25.7 9.7 47 kg 2½" x 1½" / 65mm x 40mm 3 B
Contact Sales
NSX 65-40-125/2.2 PN/NSX 65-40-125/2.2 20 9.7 35 kg 2½" x 1½" / 65mm x 40mm 2.2 B
Contact Sales
NSX 65-40-125/1.5 PN/NSX 65-40-125/1.5 15.5 8.3 33 kg 2½" x 1½" / 65mm x 40mm 1.5 B
Contact Sales
NSX 50-32-200/5.5 PN/NSX 50-32-200/5.5 58.5 5.5 77 kg 2" x 1¼" / 50mm x 32mm 5.5 B
Contact Sales
NSX 50-32-200/4 PN/NSX 50-32-200/4 45.7 5.5 58 kg 2" x 1¼" / 50mm x 32mm 4 B
Contact Sales
NSX 50-32-200/3 PN/NSX 50-32-200/3 34.9 5.5 53 kg 2" x 1¼" / 50mm x 32mm 3 B
Contact Sales
NSX 50-32-160/2.2 PN/NSX 50-32-160/2.2 28 5 39 kg 2" x 1¼" / 50mm x 32mm 2.2 B
Contact Sales
NSX 50-32-160/1.5 PN/NSX 50-32-160/1.5 22.5 5 37 kg 2" x 1¼" / 50mm x 32mm 1.5 B
Contact Sales
NSX 50-32-160/1.1 PN/NSX 50-32-160/1.1 18.7 3.4 31 kg 2" x 1¼" / 50mm x 32mm 1.1 B
Contact Sales
Lead time applies
Overview

Features

  • Motor available up to 37W
  • Maximum head - 70m
  • Maximum operating temperature - 100ºC
  • Maximum flow rate - 55.5 l/sec
  • Horizontal installation
  • 304 stainless steel construction available for increased corrosion resistance

Applications

  • HVAC systems
  • High-pressure fluid delivery
  • Irrigation
  • Filtration (e.g. for swimming pools)

Options

  • Silicon carbide or carbon mechanical seals for high-pressure capability and corrosion resistance
