main product photo

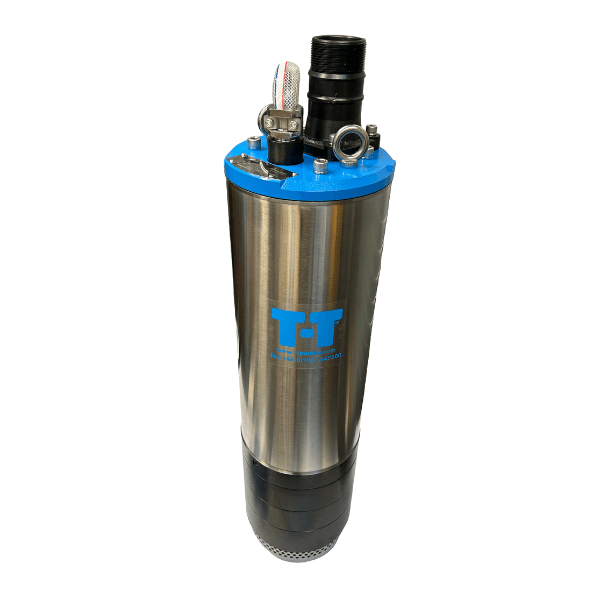

KTH/S - Corrosion Resistant De-watering Pump

The KTH/S submersible pump features a double mechanical seal and a chrome-plated shaft to ensure high corrosion and wear resistance.

The hydraulic part under the motor is cooled by the pumped water for safe operation, with the pump only partially submerged. Suitable for dewatering, water transfer and irrigation applications.

Part of our Kino Titan® Range of contractors pumps.

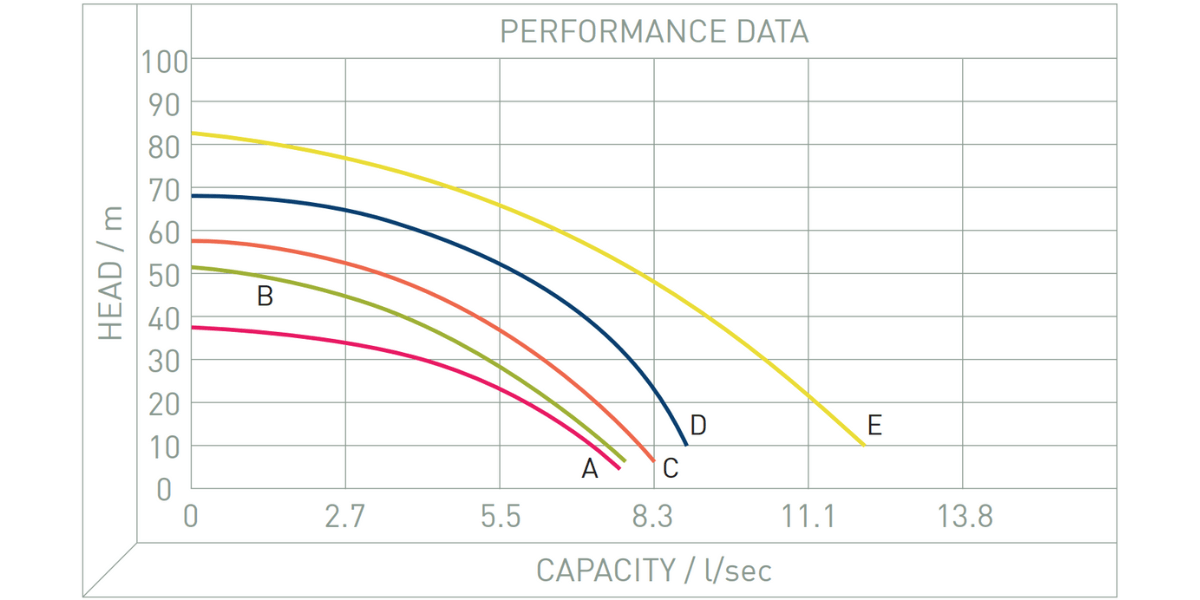

Performance Image for KTH/S - Corrosion Resistant De-watering Pump View Performance Data
Performance Image for KTH/S - Corrosion Resistant De-watering Pump

Orders placed by 3pm have same working day dispatch and next working day delivery, selected models only

Need help finding the right solution?

Call our Specialist Advisers +44 (0)1630 647200

Model Options
Type Product Code
Curve
 Output Discharge Maximum Free
Passage
mm		 Cable*
m		 Weight
kg		 Datasheet Band Price Quantity Delivery Status
Amps kW mm inch Head
m		 Capacity
l/sec
KTHS 100 (3) 60-25 TTP/KTHS100-25 J 51 amp25.0 kW 25.0 100 mm4 inch 4 Head123 mCapacity25 l/sec 25 10 mm 15 m 263 kg datasheet B
£9,000.00
KTHS 80 (3) 40-18.5 TTP/KTHS80-18.5 I 37.2 amp18.5 kW 18.5 80 mm3 inch 3 Head108 mCapacity25 l/sec 25 8 mm 15 m 225 kg datasheet B
£7,881.00
KTHS 80 (3) 40-15 TTP/KTHS80-15 H 31 amp15.0 kW 15.0 80 mm3 inch 3 Head90 mCapacity25 l/sec 25 8 mm 15 m 206 kg datasheet B
£6,458.00
KTHS 65 (4) 20-15 TTP/KTHS50-15 G 31 amp15.0 kW 15.0 50 mm2 inch 2 Head142 mCapacity13.8 l/sec 13.8 6 mm 15 m 210 kg datasheet B
£5,845.00
KTHS 50 (3) 20-11 TTP/KTHS50-11 F 22 amp11.0 kW 11.0 50 mm2 inch 2 Head106 mCapacity13.8 l/sec 13.8 6 mm 15 m 178 kg datasheet B
£4,300.00
KTHS 50 (4) 25-7.5 TTP/KTHS50-7.5 E 15.7 amp7.5 kW 7.5 50 mm2 inch 2 Head84 mCapacity11.6 l/sec 11.6 6 mm 15 m 92 kg datasheet B
£4,368.00
KTHS 50 (3) 25 -5.5 TTP/KTHS50-5.5 D 11.7 amp5.5 kW 5.5 50 mm2 inch 2 Head67 mCapacity8.8 l/sec 8.8 6 mm 15 m 75 kg datasheet B
£3,602.00
KTHS 50 (3) 12.5-4 TTP/KTHS50-4 C 8.8 amp4.0 kW 4.0 50 mm2 inch 2 Head57 mCapacity8.3 l/sec 8.3 6 mm 15 m 67 kg datasheet B
£3,276.00
KTHS 50 (3) 10-3 TTP/KTHS50-3 B 7.2 amp3.0 kW 3.0 50 mm2 inch 2 Head51 mCapacity7.7 l/sec 7.7 6 mm 15 m 62 kg datasheet B
£2,615.00
KTHS 50 (2) 10-2.2 TTP/KTHS50-2.2 A 5.4 amp2.2 kW 2.2 50 mm2 inch 2 Head38 mCapacity7.7 l/sec 7.7 6 mm 15 m 53 kg datasheet B
£2,305.00
Type Product Code
Curve
 Output Discharge Maximum Free
Passage
mm		 Cable*
m		 Weight
kg		 Datasheet Band Price Quantity Delivery Status
Amps kW mm inch Head
m		 Capacity
l/sec
KTHS 100 (3) 60-25 TTP/KTHS100-25 J 51 25.0 100 4 123 25 10 mm 15 m 263 kg datasheet B
£9,000.00
KTHS 80 (3) 40-18.5 TTP/KTHS80-18.5 I 37.2 18.5 80 3 108 25 8 mm 15 m 225 kg datasheet B
£7,881.00
KTHS 80 (3) 40-15 TTP/KTHS80-15 H 31 15.0 80 3 90 25 8 mm 15 m 206 kg datasheet B
£6,458.00
KTHS 65 (4) 20-15 TTP/KTHS50-15 G 31 15.0 50 2 142 13.8 6 mm 15 m 210 kg datasheet B
£5,845.00
KTHS 50 (3) 20-11 TTP/KTHS50-11 F 22 11.0 50 2 106 13.8 6 mm 15 m 178 kg datasheet B
£4,300.00
KTHS 50 (4) 25-7.5 TTP/KTHS50-7.5 E 15.7 7.5 50 2 84 11.6 6 mm 15 m 92 kg datasheet B
£4,368.00
KTHS 50 (3) 25 -5.5 TTP/KTHS50-5.5 D 11.7 5.5 50 2 67 8.8 6 mm 15 m 75 kg datasheet B
£3,602.00
KTHS 50 (3) 12.5-4 TTP/KTHS50-4 C 8.8 4.0 50 2 57 8.3 6 mm 15 m 67 kg datasheet B
£3,276.00
KTHS 50 (3) 10-3 TTP/KTHS50-3 B 7.2 3.0 50 2 51 7.7 6 mm 15 m 62 kg datasheet B
£2,615.00
KTHS 50 (2) 10-2.2 TTP/KTHS50-2.2 A 5.4 2.2 50 2 38 7.7 6 mm 15 m 53 kg datasheet B
£2,305.00
Orders placed by 3-00 pm have same working day dispatch and prompt delivery, normally next working day delivery, on selected models only.
Lead time applies
Overview

Features

  • Maximum capacity: 25 l/sec
  • Maximum head: 142m
  • Power: 2.2kW (3HP) to 25kW (33.5HP)
  • Power supply: three-phase 400V 10% 50Hz
  • Insulation class: F
  • Protection class: IP68
  • Cable length: 15m
  • Maximum water temperature: 40°C
  • Maximum submersion depth: 20m

Applications

  • Dewatering
  • Water transfer
  • Irrigation
