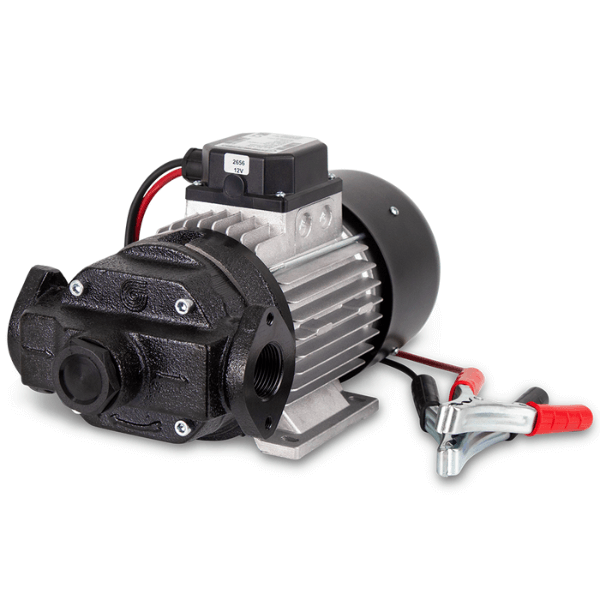

AG90 - Diesel Transfer Pump
The AG90 range of diesel transfer pumps incorporates a self-adjusting rotary vane, and its cast-iron pump body is fitted with a bypass valve.
WITH SWITCH KEY - The AG90 is available with a built-in switch with key to start and stop the pump without touching the battery clamps, this key can be removed for safety and security reasons.
Features
- Eccentric of self-adjusting blades
- Rust treatment
- Suitable for the diesel transfer (ask for other liquids)
- Free flow: 70-80 l/min
- Motor: 0.37 kW
- Consumption: 12 VDC: 35-53 A · 24 VDC: 25-35 A
- Operation: S1
- Motor speed: 1,500 rpm
- Protection: IP-55
- Pressure: 1.4 bar
- Max. suction length: 2.7 m
- Priming pipe suction: 5 m
- Ambient Temperature: -20 ºC / +50 ºC
- Connection: F1" BSP flanges and threads
Applications
- Agriculture
- Building
- Marine
- Industry
- Plant
- Transport
Benefits
- Robust design
- Superior materials used
- Built for reliability and long life
