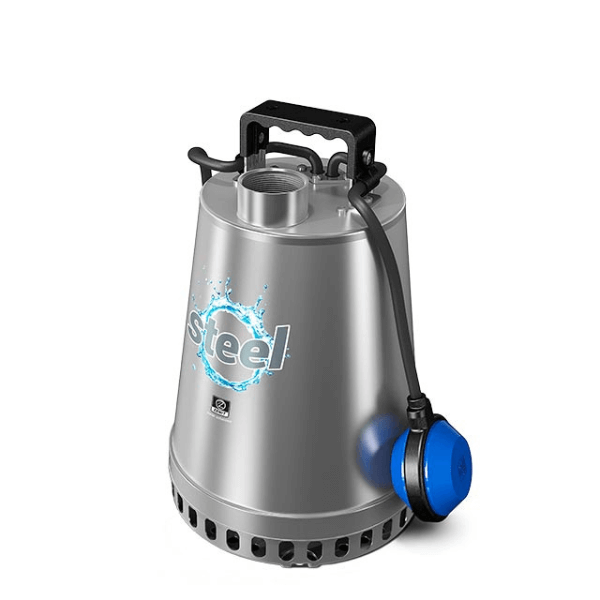

Zenit DR Steel - Domestic Drainage Pump

The Zenit DR Steel is a sturdy range of submersible drainage pumps made from stainless steel, with a multi-channel open impeller for applications with clear or grey wastewater.

This drainage pump is automatic as standard and available as manually operated on request.

Performance Image for Zenit DR Steel - Domestic Drainage Pump View Performance Data
Performance Image for Zenit DR Steel - Domestic Drainage Pump

Orders placed by 3pm have same working day dispatch and next working day delivery, selected models only

Need help finding the right solution?

Call our Specialist Advisers +44 (0)1630 647200

Model Options
Type Product Code
Curve
 Output Discharge Maximum Free
Passage
mm		 Cable*
m		 Weight
kg		 Datasheet Band Price Quantity Delivery Status
Amps kW mm inch Head
m		 Capacity
l/sec
DRSTEEL 75 400V/3Ph PZ/5007.002 D 2.4 amp0.75 kW 0.75 40 mm1½ inch 1½ Head16 mCapacity5.6 l/sec 5.6 12 mm 10 m 8.4 kg datasheet A
£598.50
DRSTEEL 75 230V/1Ph PZ/5004.004 D 5.6 amp0.75 kW 0.75 40 mm1½ inch 1½ Head16 mCapacity5.6 l/sec 5.6 12 mm 10 m 8.4 kg datasheet A
£567.00
DRSTEEL 55 230V/1Ph PZ/5003.004 C 4.3 amp0.55 kW 0.55 40 mm1½ inch 1½ Head12.5 mCapacity5 l/sec 5 12 mm 10 m 7.7 kg datasheet A
£514.50
DRSTEEL 37 230V/1Ph PZ/5002.004 B 3.1 amp0.37 kW 0.37 32 mm1¼ inch 1¼ Head13 mCapacity2.6 l/sec 2.6 10 mm 10 m 6.3 kg datasheet A
£399.00
DRSTEEL 25 230V/1Ph PZ/5001.004 A 2.3 amp0.25 kW 0.25 32 mm1¼ inch 1¼ Head8.5 mCapacity2 l/sec 2 10 mm 10 m 5.9 kg datasheet A
£372.75
Type Product Code
Curve
 Output Discharge Maximum Free
Passage
mm		 Cable*
m		 Weight
kg		 Datasheet Band Price Quantity Delivery Status
Amps kW mm inch Head
m		 Capacity
l/sec
DRSTEEL 75 400V/3Ph PZ/5007.002 D 2.4 0.75 40 1½ 16 5.6 12 mm 10 m 8.4 kg datasheet A
£598.50
DRSTEEL 75 230V/1Ph PZ/5004.004 D 5.6 0.75 40 1½ 16 5.6 12 mm 10 m 8.4 kg datasheet A
£567.00
DRSTEEL 55 230V/1Ph PZ/5003.004 C 4.3 0.55 40 1½ 12.5 5 12 mm 10 m 7.7 kg datasheet A
£514.50
DRSTEEL 37 230V/1Ph PZ/5002.004 B 3.1 0.37 32 1¼ 13 2.6 10 mm 10 m 6.3 kg datasheet A
£399.00
DRSTEEL 25 230V/1Ph PZ/5001.004 A 2.3 0.25 32 1¼ 8.5 2 10 mm 10 m 5.9 kg datasheet A
£372.75
Orders placed by 3-00 pm have same working day dispatch and prompt delivery, normally next working day delivery, on selected models only.
Lead time applies
Overview

Features

  • Twin mechanical seal
  • Stainless steel construction
  • Open multi-channel impeller in 304 stainless steel
  • 2 pole motor
  • G1 ¼”- G1 ½ vertical discharge
  • 12mm maximum free passage
  • 16m maximum head
  • Operating temperature 40°C (can operate at 90°C for up to 3 minutes)
  • Automatic as standard

Applications

  • Emptying tanks
  • Clear or slightly soiled wastewater
  • Pumping-out flooded premises
  • Garden sprinklers and pumping from tanks
  • Domestic drainage

Benefits

  • Built for reliability and long life
  • Lightweight
  • Popular product

Applications

Single Dwellings And Basements Single Dwellings And Basements Industrial Industrial
