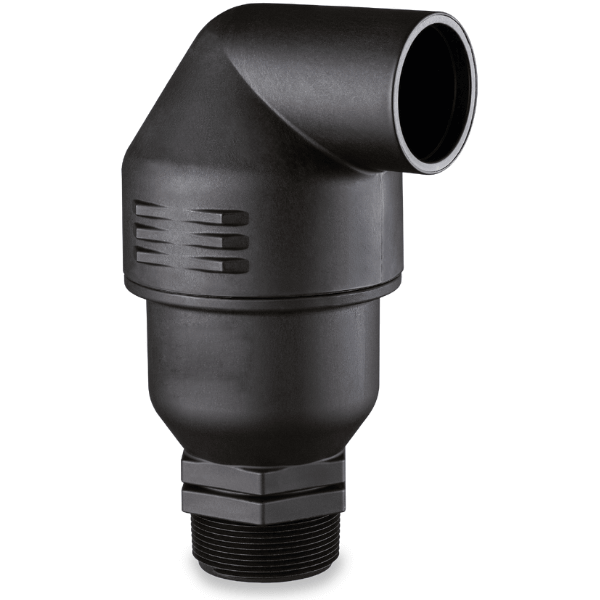

Plastic Combination Air Valve
CSA ARGO
Combination Air Valve
CSA combination automatic air valves provide effective air management in potable, irrigation and treated water applications.
The plastic air valves have three functions:
-
Efficient release of gas to prevent pressure build-up
-
Ingress of gas to prevent vacuum formation as media leaves the system
-
Controlled bleed of gas to maintain system stability
Technical Specification
- Standard: BS EN 1074-4
- Inlet: 1” BSP to 2” BSP
- Maximum working pressure: 16 bar
- Minimum working pressure: 0.2 bar
- Temperature range: 60°C maximum, insulate at 0°C and below
Features
- Lightweight single chamber design with internal float guides
- Aerodynamic full-bore body prevents premature closure at higher air velocity
- Dynamic sealing prevents leakage under low-pressure conditions
- Variants include; exit only, entrance only and anti-shock mechanism
- BSP male thread inlet connection
- Compact, corrosion resistant and low maintenance
- DM174 approval for potable water use
Benefits
- Innovative design
- Lightweight
- Excellent performance
- Easy to use
