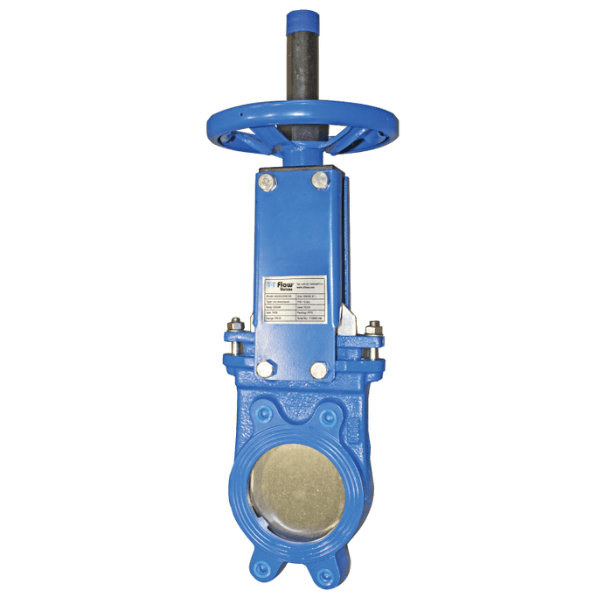

Uni-Directional Knife Gate Valve - Ductile Iron, Handwheel
Our uni-directional full-bore knife gate valves are designed for durability, with a wafer semi-lugged ductile iron body, 316 stainless steel gate and FKM seat.
These isolation valves are handwheel operated, flanged to EN1092-2 PN10 and have a rising spindle with rolled thread to reduce operating friction for a longer lasting solution.
Features
- Uni-Directional sealing, seals in the direction of flow
- Full-bore to allow high flow rates with low pressure drop
- Wafer semi-legged one-pieced ductile iron body
- Stainless steel (SS316/1.4401) chamfered edged polished gate to effectively cut through media
- Stainless steel rising stem with rolled thread form to reduce friction
- No internal cavities avoids sediment accumulation
- Adjustable gland follower allowing in-service maintenance
- Chemically resistant FKM Seat
- Corrosion resistant construction
- Position indicator as standard
- Handwheel
- Accessories: limit switches, mechanical lockout and extension spindle
Benefits
- Lightweight design
- Easy to install
- Built for reliability
- Maintainable in service
