Trojan® Grinder - Single/Dual Above Ground Pumping Station

The Trojan® Grinder range of compact pumping stations provides a complete unit with grinder pumps, valves and a control panel, boasting easy installation and maintenance thanks to their prepackaged design.

The Trojan® Grinder is used in wastewater or sewage applications where removal is not possible under gravity, such as a single dwelling and multiple developments, with the grinder impeller providing reliable solids handling in effluent removal applications.

This complete above-ground pumping station comes in single and dual pump configurations.

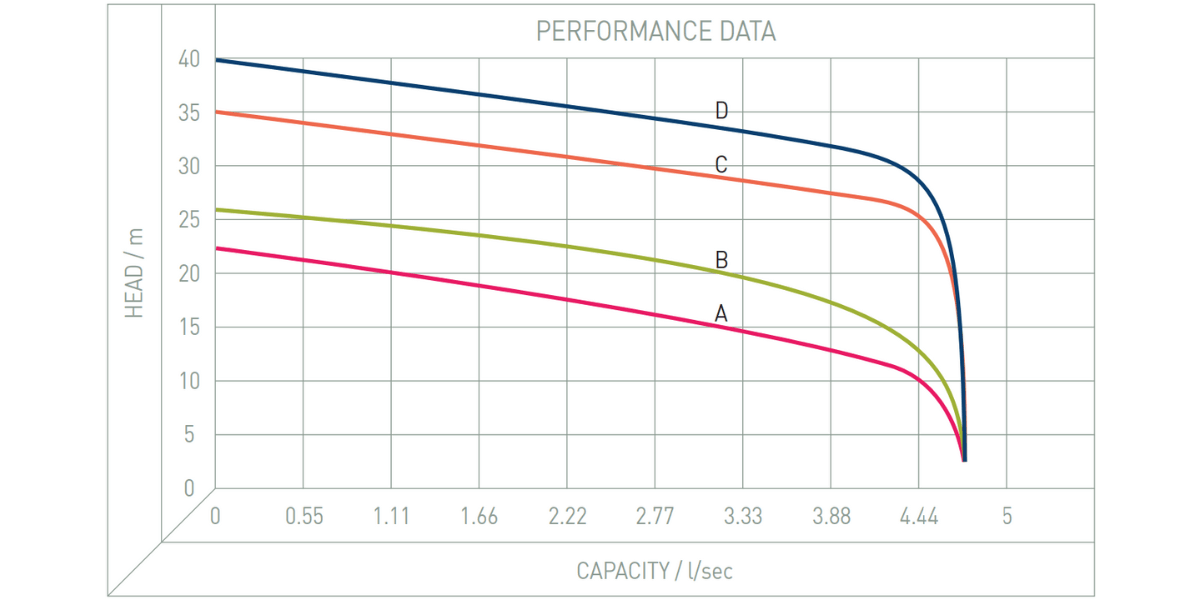

Performance Image for Trojan® Grinder - Single/Dual Above Ground Pumping Station View Performance Data
Performance Image for Trojan® Grinder - Single/Dual Above Ground Pumping Station
Datasheet Datasheet
Datasheet Datasheet

Specialist Product, Requires Technical Advice. To order call: +44 (0) 1630 647200

Need help finding the right solution?

Call our Specialist Advisers +44 (0)1630 647200

Model Options
Type Product Code
Curve
 Output Maximum Weight
kg		 Datasheet Capacity (L) RPM Volume (L) Free Passage (mm) Band Price Quantity Delivery Status
Amps kW Head
m		 Capacity
l/sec
Trojan Manual Hand Pump Trojan Manual Hand Pump - - - Head15 mCapacity0.65L Per Action l/sec 0.65L Per Action 16 kg - - - - 40 B
Contact Sales
Enquire Now
Trojan 150 GD 3.2/4 400V Trojan 150 GD 3.2/4 400V D 6.5 amp3.2 kW 3.2 Head39 mCapacity4.7 l/sec 4.7 140 kg datasheet 150 2800 150 8.5 B
Contact Sales
Enquire Now
Trojan 150 GD 3.2/3 400V Trojan 150 GD 3.2/3 400V C 6.5 amp3.2 kW 3.2 Head35 mCapacity4.7 l/sec 4.7 140 kg datasheet 150 2800 150 8.5 B
Contact Sales
Enquire Now
Trojan 150 GD 1.7/2 400V Trojan 150 GD 1.7/2 400V B 3.7 amp1.7 kW 1.7 Head25 mCapacity4.7 l/sec 4.7 130 kg datasheet 150 2.800 150 8.5 B
Contact Sales
Enquire Now
Trojan 150 GD 1.7/1 400V Trojan 150 GD 1.7/1 400V A 3.7 amp1.7 kW 1.7 Head22 mCapacity4.7 l/sec 4.7 130 kg datasheet 150 2800 150 8.5 B
Contact Sales
Enquire Now
Trojan 55 GS 3.2/4 400V Trojan 55 GS 3.2/4 400V D 6.5 amp3.2 kW 3.2 Head39 mCapacity4.7 l/sec 4.7 68 kg datasheet 150 2800 55 8.5 B
Contact Sales
Enquire Now
Trojan 55 GS 3.2/3 400V Trojan 55 GS 3.2/3 400V C 6.5 amp3.2 kW 3.2 Head35 mCapacity4.7 l/sec 4.7 68 kg datasheet 55 2800 55 8.5 B
Contact Sales
Enquire Now
Trojan 55 GS 1.7/2 400V Trojan 55 GS 1.7/2 400V B 3.7 amp1.7 kW 1.7 Head25 mCapacity4.7 l/sec 4.7 63 kg datasheet 55 2800 55 8.5 B
Contact Sales
Enquire Now
Trojan 55 GS 1.7/1 400V Trojan 55 GS 1.7/1 400V A 3.7 amp1.7 kW 1.7 Head22 mCapacity4.7 l/sec 4.7 63 kg datasheet 55 2800 55 8.5 B
Contact Sales
Enquire Now
Trojan 55 GS 1.7/1 230V Trojan 55 GS 1.7/1 230V A 10.5 amp1.7 kW 1.7 Head22 mCapacity4.7 l/sec 4.7 63 kg datasheet 55 2800 55 8.5 B
Contact Sales
Enquire Now
Type Product Code
Curve
 Output Maximum Weight
kg		 Datasheet Capacity (L) RPM Volume (L) Free Passage (mm) Band Price Quantity Delivery Status
Amps kW Head
m		 Capacity
l/sec
Trojan Manual Hand Pump Trojan Manual Hand Pump - - - 15 0.65L Per Action 16 kg - - - - 40 B
Contact Sales
Enquire Now
Trojan 150 GD 3.2/4 400V Trojan 150 GD 3.2/4 400V D 6.5 3.2 39 4.7 140 kg datasheet 150 2800 150 8.5 B
Contact Sales
Enquire Now
Trojan 150 GD 3.2/3 400V Trojan 150 GD 3.2/3 400V C 6.5 3.2 35 4.7 140 kg datasheet 150 2800 150 8.5 B
Contact Sales
Enquire Now
Trojan 150 GD 1.7/2 400V Trojan 150 GD 1.7/2 400V B 3.7 1.7 25 4.7 130 kg datasheet 150 2.800 150 8.5 B
Contact Sales
Enquire Now
Trojan 150 GD 1.7/1 400V Trojan 150 GD 1.7/1 400V A 3.7 1.7 22 4.7 130 kg datasheet 150 2800 150 8.5 B
Contact Sales
Enquire Now
Trojan 55 GS 3.2/4 400V Trojan 55 GS 3.2/4 400V D 6.5 3.2 39 4.7 68 kg datasheet 150 2800 55 8.5 B
Contact Sales
Enquire Now
Trojan 55 GS 3.2/3 400V Trojan 55 GS 3.2/3 400V C 6.5 3.2 35 4.7 68 kg datasheet 55 2800 55 8.5 B
Contact Sales
Enquire Now
Trojan 55 GS 1.7/2 400V Trojan 55 GS 1.7/2 400V B 3.7 1.7 25 4.7 63 kg datasheet 55 2800 55 8.5 B
Contact Sales
Enquire Now
Trojan 55 GS 1.7/1 400V Trojan 55 GS 1.7/1 400V A 3.7 1.7 22 4.7 63 kg datasheet 55 2800 55 8.5 B
Contact Sales
Enquire Now
Trojan 55 GS 1.7/1 230V Trojan 55 GS 1.7/1 230V A 10.5 1.7 22 4.7 63 kg datasheet 55 2800 55 8.5 B
Contact Sales
Enquire Now
Orders placed by 3-00 pm have same working day dispatch and prompt delivery, normally next working day delivery, on selected models only.
Lead time applies
Overview

Features

  • Polyethylene chamber
  • 55l or 150l capacity
  • IP68 - fully submersible
  • Complete unit fitted with high-efficiency single/dual grinder pumps
  • Mechanical seal within an oil bath
  • Pneumatic level control with LCD display, fault and alarm options available (IP68 rated)
  • Maximum media temperature 55ºC
  • 250mm minimum inlet height
  • Supplied with 3.5m cable to motor and 3.5 pneumatic tube connecting Trojan® to control unit (IP65 rated)

Applications

  • Wastewater or sewage applications where removal is not possible under gravity, such as a single dwelling or multiple developments

Options

  • DN50 or DN100 inlet (55 GS)
  • DN100 or DN150 inlet (150 GD)

Applications

Housing Housing Domestic Waste Water Domestic Waste Water Commercial Development Commercial Development
