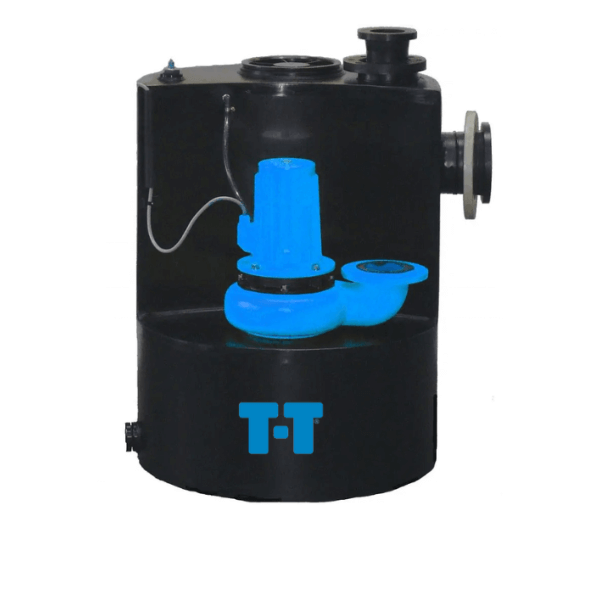

Trojan® Vortex Large - Single/Dual Above Ground Pumping Station
The Trojan® Large Vortex range of compact pumping stations provides a complete unit supplied with vortex pumps, valves and control panels, with easy installation and maintenance.
This compact, above-ground pumping unit has increased solids handling, motor power and chamber size, making it ideal for larger wastewater or sewage applications where removal is not possible under gravity.
Features
- Polyethylene chamber
- Complete unit fitted with high-efficiency single/dual vortex pumps
- Mechanical seal within an oil bath
- DN150 inlet and DN100 outlet
- Pneumatic level control with LCD display, fault and alarm options available (IP65 rated)
- Maximum media temperature 55ºC
- Integrated non-return valve
- 180mm minimum inlet height
- Supplied with 3.5m cable to motor and 3.5 pneumatic tube connecting Trojan® to the control unit (IP65 rated)
Applications
- For use in wastewater or sewage applications where removal is not possible under gravity. Ideal for offices, schools, flats and hospitals
Options
- 350l or 480l capacity
